3D Edison Type B - For Personal Theater

Enjoy 2D movie and gets exclusive shock for 3D video!

  • BD 3D DVD/Game + 3D Theatre can support HD resolution.
  • BD 3D DVD/Game + 3D Edison + 3D Theatre can support FHD resolution.
  • BD 2D DVD/Game + 3D Edison + 3D Theater can support FHD resolution.

Enjoy 2D movie and gets exclusive shock for 3D vision everywhere

[Type B - 3D Edison theater] & [Google Chromecast] Let you gets 3D vision everywhere

Overview

  • Resolution up to 1920x1080P @ 60 Hz

This 3D Edison Theater Console Complete Package will allow you converter any 2D Image to 3D on 3D theater through HDMI. It can also generation frame rate convert 1080P@24 up to 1080P@60.  3D theater support FHD 1080P and HD 720P @ (2D to 3D mode). PS: 60Hz per eye.

  • 120 inch magnification field of 3 meter
  • Very Smaller : 170(W)x57(H)x76(D) mm
  • Light welterweight : 250g

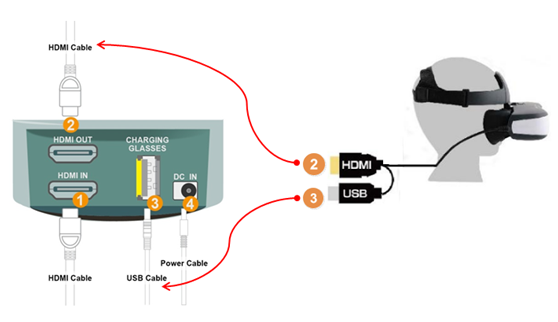

To use your 3D Edison Theater:



With power adapter

Plug all cables to the appropriate locations on the 3D Edison box

  • Connect a HDMI input cable to the HDMI input.
  • Connect a HDMI output cable to the 3D Theatre.
  • Connect USB cable to 3D Theatre.
  • Connect the 3D Edison power supply.

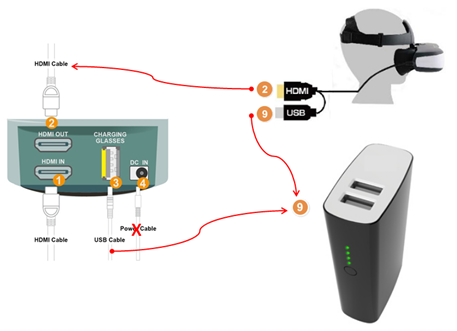

With power pack (Take out everywhere)



Plug all cables to the appropriate locations on the 3D Edison box

  • Connect a HDMI input cable to the HDMI input.
  • Connect a HDMI output cable to the 3D Theatre.
  • Connect USB cable to power pack.
  • Don't connect the 3D Edison power supply.
  • Connect 3D Theater to power pack

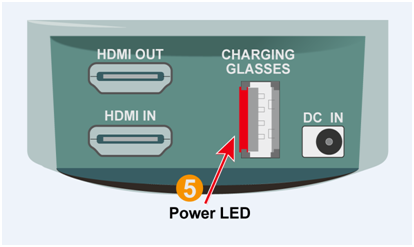

The status of the red power led

The power LED will glow red when in use. When the power cable input the power LED will quickly turn on, then BLINKING and waiting receives HDMI signal transit, and then on permanently to indicate that the 3D Edison handshake has been completed.

The status of LED in red may be used for troubleshooting:

  •   LED OFF: Insufficient power. Use the 3D Edison power supply.
  •   LED BLINKING: The 3D Edison is receiving power and is ready to accept an HDMI signal. (The 3D Edison into save power mode)
  •   LED ON: The 3D Edison is powered and receiving and decoding the HDMI signal.

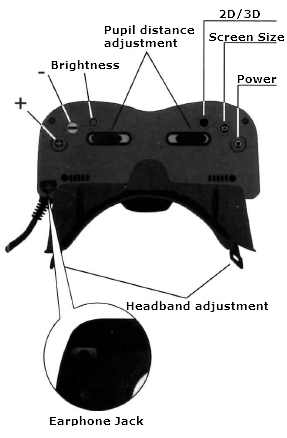

Support myopic up to 500 degrees. Not support astigmatic eye-sight. Circle the ring counterclockwise for your right eye and left eye respectively.

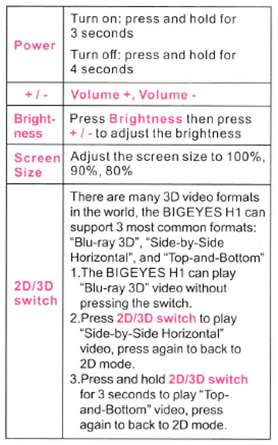

Power on :Press Power button for 3 seconds

Power off :Press Power button for 4 seconds





Quick Start Guide(3D Edison + 3D Theater)

  1. Plug all cables to the appropriate locations on the 3D Edison box
  • Connect a HDMI input cable to the HDMI input.
  • Connect a HDMI output cable to the 3D Theatre.
  • Connect USB cable to 3D Theatre.
  • Connect the 3D Edison power supply.

2. Grab the remote that was included in the packaging. Place the batteries and also, make sure the batteries are alive.


3. Press【Power Button】on the remote towards 3D Edison to turn on system and check power led states.


4. Press【Power Button】on 3D Theatre (3 sec).



5a. HDMI Input is 3D Blue-ray DVD:

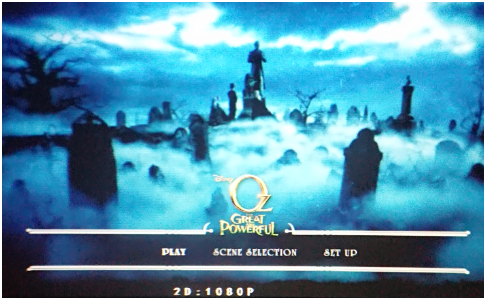

   Stay on selection menu



   PressVRon remote >FHDon remote>3D Buttonon 3D Theatre



  1. Press【VRon remote: You will get side by side screen@720P

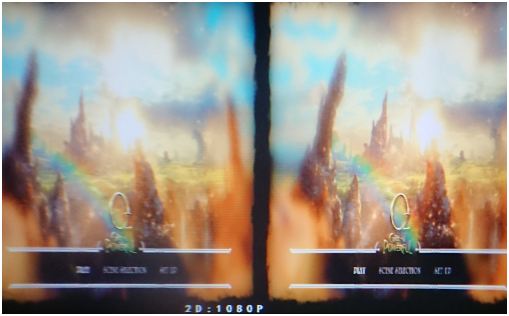

  2. PressFHDon remote: You will get side by side screen@1080P
  3. Press3D Buttonon 3D Theater :You will get 3D screen L/R@1080P

5b. HDMI Input is 2Dformate:

Press【VRon remote >3Don remote>3D Buttonon 3D Theatre



Specifications



Product Specifications

3D Edison Theater

■2D to 3D conversion : Side by Side (Half)

■Support power pack to take it any where

■Support Resolution : FHD/HD/480P

■HDMI inputs resolution : FHD/HD/480P (24Hz/60Hz) Supported

■3D Input Format :Side by Side (Half)/Top and Bottom/Frame Packing

■Adjust Screen Size 100%,90%,80%

■Support myopic up to 500 degrees

■Circle the ring counterclockwise for R/L eye

■Power Supply: DC 5V/0.5A

■System Weight: 250(g)



Type B Rev:1.2 Specifications



  • Screen resolution up to Real 1920x1080P(FHD) per eye.
  • Input  FHD/HD resolution supported.
  • 2D/3D switch.
  • Adjust Screen Size 100%,90%,80%
  • Support myopic up to 500 degrees.
  • Circle the ring counterclockwise for R/L eye.
  • With IR remote.
  • Power :DC 5V/0.5A
  • System Weight: 250(g)
  •

Purchase Details

Price $505.50 AUD
Quantity
Company Competition Dynasty Co.,Ltd.
Country of Origin Taiwan
Buy Now
